The Pneumatic sling type fender offers the same functionality as our standard model but without the netting.
These fenders are readily available in stock with an internal pressure of 0.5 Bar, and can be customized to an internal pressure of 0.8 Bar in all dimensions.
Couldn't load pickup availability

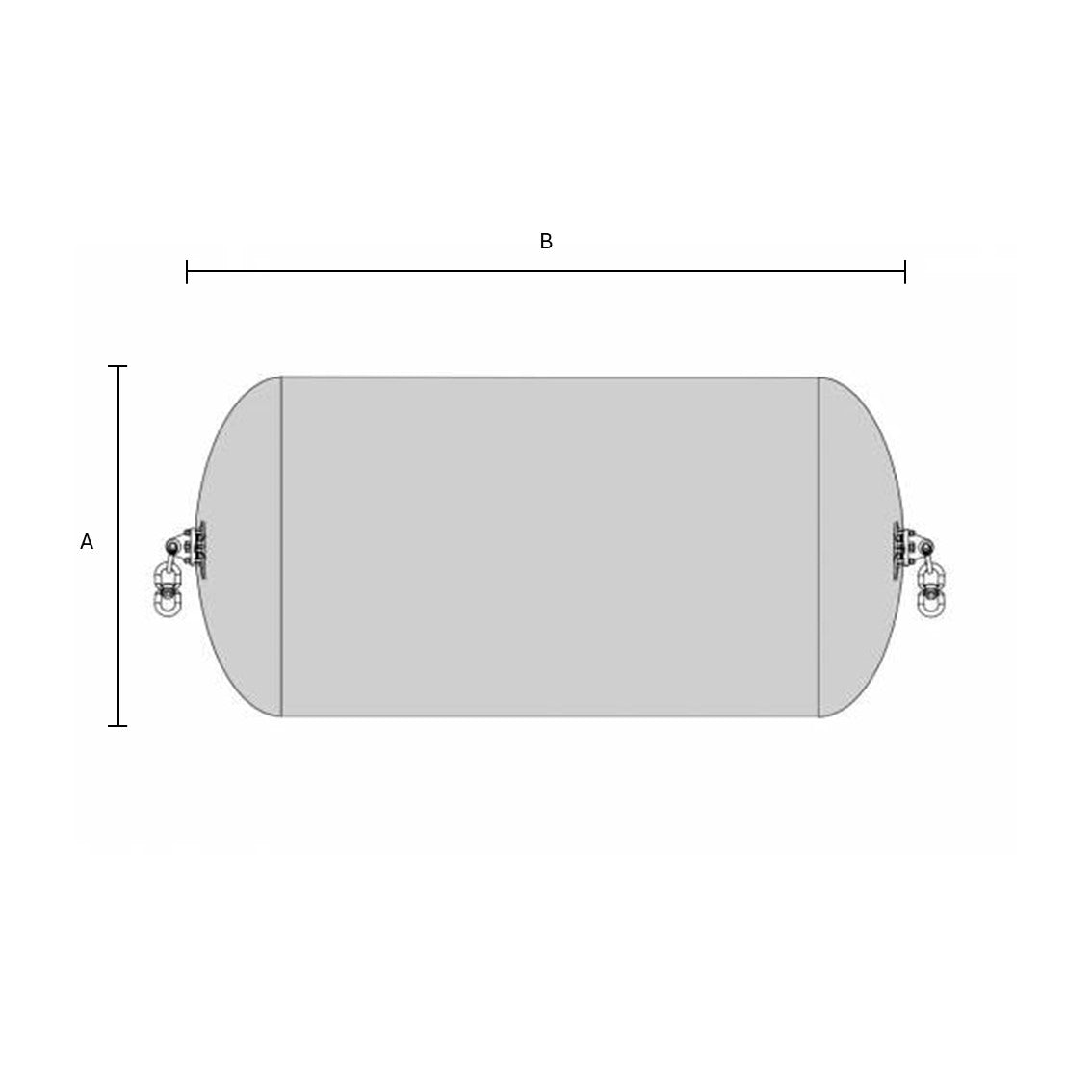

| SKU | Item name | Diameter (mm) A | Length (mm) B | Initial internal pressure (kPa) | Energy absorption at 60% compression (kN/m) | Reaction force at 60% compression (kN/m) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 7005001000-S50 | Pneumatic Fender 500x1000mm - 50 Kpa - sling type | 500 | 1000 | 50 | 6 | 64 | 28.00 |
| 7010001500-S50 | Pneumatic Fender 1000x1500mm - 50 Kpa - sling type | 1000 | 1500 | 50 | 32 | 182 | 60.00 |
| 7010002000-S50 | Pneumatic Fender 1000x2000mm - 50 Kpa - sling type | 1000 | 2000 | 50 | 45 | 257 | 75.00 |
| 7012002000-S50 | Pneumatic Fender 1200x2000mm - 50 Kpa - sling type | 1200 | 2000 | 50 | 63 | 297 | 105.00 |
| 7015003000-S50 | Pneumatic Fender 1500x3000mm - 50 Kpa - sling type | 1500 | 3000 | 50 | 153 | 579 | 270.00 |
| 7020003500-S50 | Pneumatic Fender 2000x3500mm - 50 Kpa - sling type | 2000 | 3500 | 50 | 308 | 875 | 425.00 |
| 7025004000-S50 | Pneumatic Fender 2500x4000mm - 50 Kpa - sling type | 2500 | 4000 | 50 | 663 | 1381 | 610.00 |
| 7033006500-S50 | Pneumatic Fender 3300x6500mm - 50 Kpa - sling type | 3300 | 6500 | 50 | 1814 | 3015 | 1500.00 |
Sling-type pneumatic fenders have a special double-layered outer cover made of rubber, which consists of a single cover and an extra tire cord layer to provide better protection against operational damages.
