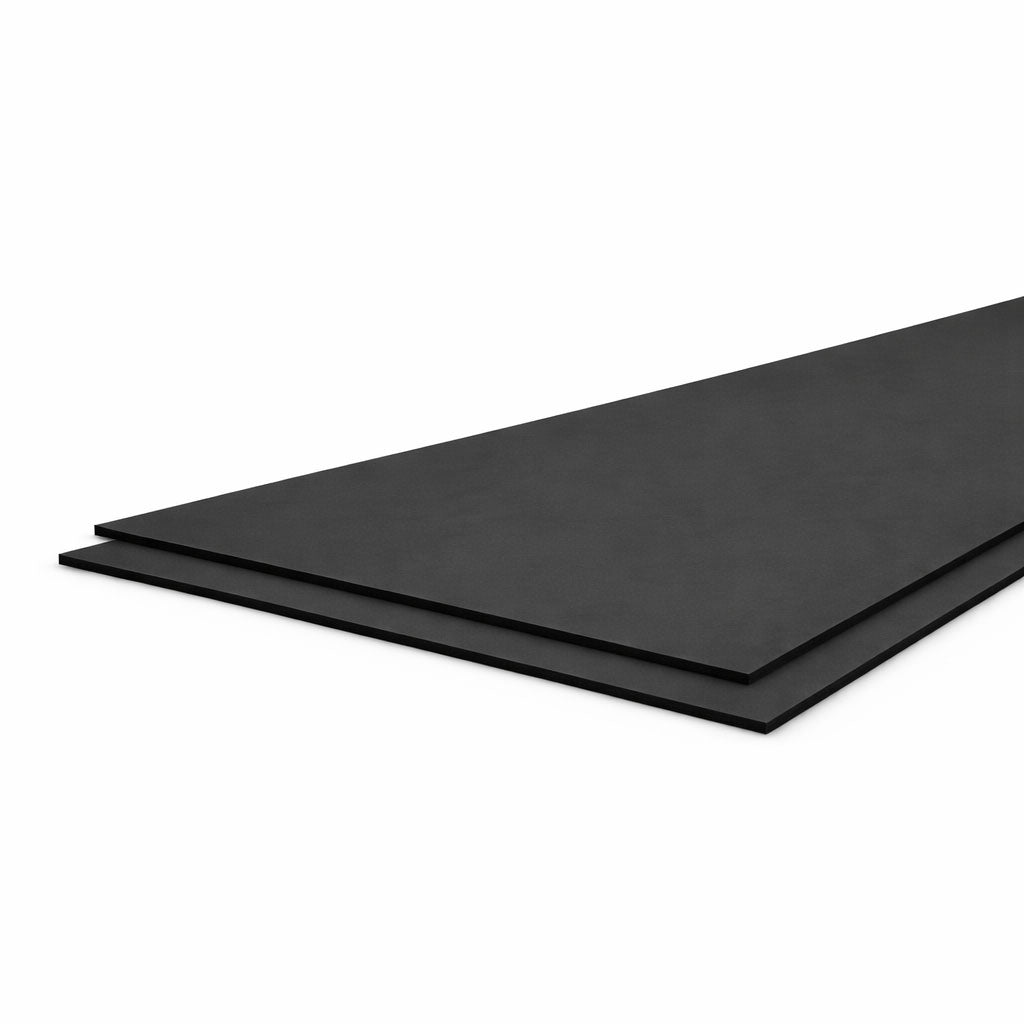

• EPDM rubber gasket sheets
1 1

EPDM rubber gasket sheets

EPDM rubber gasket sheets

View full details
Item name Thickness Max Length Max Width
EPDM rubber gasket sheets 0.25 mm 0.25 mm 2000 mm 1000 mm
EPDM rubber gasket sheets 0.3 mm 0.3 mm 2000 mm 1000 mm
EPDM rubber gasket sheets 0.4 mm 0.4 mm 2000 mm 1000 mm
EPDM rubber gasket sheets 0.5 mm 0.5 mm 2000 mm 1000 mm
EPDM rubber gasket sheets 0.6 mm 0.6 mm 2000 mm 1000 mm
EPDM rubber gasket sheets 0.75 mm 0.75 mm 2000 mm 1000 mm
EPDM rubber gasket sheets 0.8 mm 0.8 mm 2000 mm 1000 mm
EPDM rubber gasket sheets 1 mm 1 mm 2000 mm 1000 mm
EPDM rubber gasket sheets 1.2 mm 1.2 mm 2000 mm 1000 mm
EPDM rubber gasket sheets 1.5 mm 1.5 mm 2000 mm 1000 mm
EPDM rubber gasket sheets 2 mm 2 mm 2000 mm 1000 mm
EPDM rubber gasket sheets 2.5 mm 2.5 mm 2000 mm 1000 mm
EPDM rubber gasket sheets 3 mm 3 mm 2000 mm 1000 mm
EPDM rubber gasket sheets 3.2 mm 3.2 mm 2000 mm 1000 mm
EPDM rubber gasket sheets 4 mm 4 mm 2000 mm 1000 mm
EPDM rubber gasket sheets 5 mm 5 mm 2000 mm 1000 mm
EPDM rubber gasket sheets 6 mm 6 mm 2000 mm 1000 mm
EPDM rubber gasket sheets 8 mm 8 mm 2000 mm 1000 mm
EPDM rubber gasket sheets 10 mm 10 mm 2000 mm 1000 mm
EPDM rubber gasket sheets 12 mm 12 mm 2000 mm 1000 mm
EPDM rubber gasket sheets 15 mm 15 mm 2000 mm 1000 mm
EPDM rubber gasket sheets 20 mm 20 mm 2000 mm 1000 mm
EPDM rubber gasket sheets 25 mm 25 mm 2000 mm 1000 mm
EPDM rubber gasket sheets are available cut to size. Larger dimensions and custom shapes can be supplied on request.

Calculate price

2D schematic
Top view (2D)
Live preview

Related collections

What are EPDM rubber gasket sheets

EPDM rubber gasket sheets are sealing materials made from EPDM (ethylene propylene diene monomer), a synthetic elastomer known for its excellent resistance to water, weathering, UV radiation and ozone. These sheets are widely used in applications exposed to outdoor conditions or varying environmental influences.

EPDM rubber gasket material offers good flexibility and long-term stability, making it suitable for sealing applications where durability under environmental exposure is critical.

When to use EPDM rubber gasket material

EPDM rubber gasket material is used when resistance to water, steam and weathering is required. It performs well in applications involving hot water, mild chemicals and outdoor exposure, where other rubber materials may degrade over time.

EPDM gasket sheets are not suitable for applications involving oils, fuels or hydrocarbons and are therefore primarily selected for non-oil-based systems.

Applications of EPDM rubber gasket material

EPDM rubber gasket sheets are commonly applied in pipe flanges, water systems, HVAC installations and sealing interfaces exposed to outdoor environments. They are widely used in construction, water management and general industrial applications.

EPDM gasket sheets can be cut into custom gasket shapes, strips or pads, making them suitable for both standard installations and custom sealing requirements.

EPDM rubber gasket sheets specifications

Hardness: 60–80 Shore A
Density: 1.10–1.30 g/cm³
Tensile Strength: 7–12 MPa
Elongation at Break: 250–400 %
Temperature Range: −40 °C to +120 °C
Resistance: water, UV, ozone, weathering



EPDM rubber has excellent resistance to water, UV radiation, ozone and weathering, but is not recommended for applications involving oil or fuel exposure.

Custom production

In addition to standard EPDM rubber gasket sheets, we can CNC cut custom shapes and dimensions to your drawing. Suitable for prototypes, small series and repeat production.
