Request a quote
2D schematic
Top view (2D)
Live preview
Pieces per sheet:
—
Sheets needed (estimate):
—
Estimate only: actual yield can vary due to cutting kerf/tool thickness (especially on thicker sheets),
which may reduce usable dimensions by a few millimeters.
| Item name | Thickness | Max Length | Max Width |
|---|---|---|---|
| EPDM/SBR rubber gasket sheets 1 mm | 1 mm | 2000 mm | 1000 mm |
| EPDM/SBR rubber gasket sheets 1.5 mm | 1.5 mm | 2000 mm | 1000 mm |
| EPDM/SBR rubber gasket sheets 2 mm | 2 mm | 2000 mm | 1000 mm |
| EPDM/SBR rubber gasket sheets 2.5 mm | 2.5 mm | 2000 mm | 1000 mm |
| EPDM/SBR rubber gasket sheets 3 mm | 3 mm | 2000 mm | 1000 mm |
| EPDM/SBR rubber gasket sheets 4 mm | 4 mm | 2000 mm | 1000 mm |
| EPDM/SBR rubber gasket sheets 5 mm | 5 mm | 2000 mm | 1000 mm |
| EPDM/SBR rubber gasket sheets 6 mm | 6 mm | 2000 mm | 1000 mm |
| EPDM/SBR rubber gasket sheets 8 mm | 8 mm | 2000 mm | 1000 mm |
| EPDM/SBR rubber gasket sheets 9 mm | 9 mm | 2000 mm | 1000 mm |
| EPDM/SBR rubber gasket sheets 10 mm | 10 mm | 2000 mm | 1000 mm |
| EPDM/SBR rubber gasket sheets 12 mm | 12 mm | 2000 mm | 1000 mm |
| EPDM/SBR rubber gasket sheets 15 mm | 15 mm | 2000 mm | 1000 mm |
| EPDM/SBR rubber gasket sheets 20 mm | 20 mm | 2000 mm | 1000 mm |
| EPDM/SBR rubber gasket sheets 25 mm | 25 mm | 2000 mm | 1000 mm |
| EPDM/SBR rubber gasket sheets are available cut to size. Larger dimensions and custom shapes can be supplied on request. | |||
EPDM/SBR rubber gasket sheets specifications
| Hardness: | 55–75 Shore A |
| Density: | 1.10–1.35 g/cm³ |
| Tensile Strength: | 6–12 MPa |
| Elongation at Break: | 200–400 % |
| Temperature Range: | −30 °C to +100 °C |
| Resistance: | water, air, weathering (moderate) |

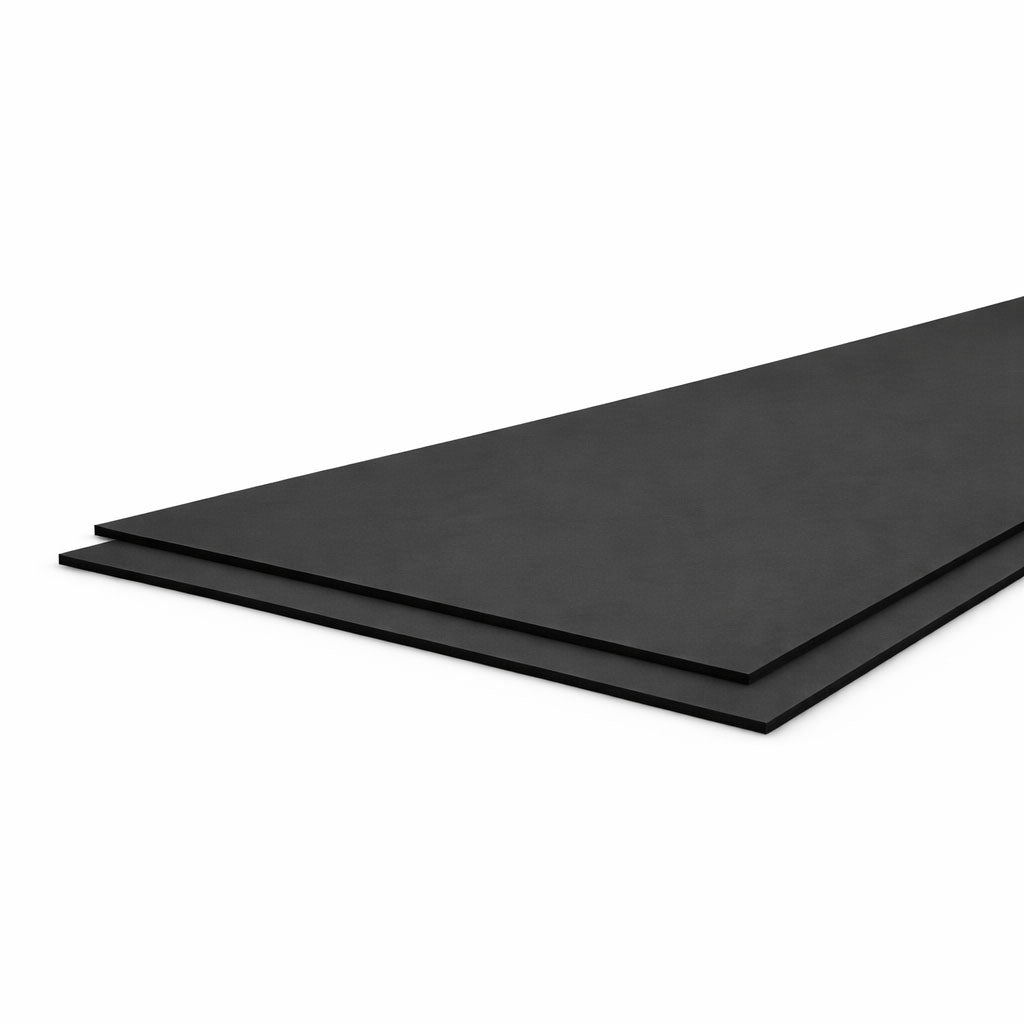

EPDM / SBR rubber blends are commonly used for general-purpose sealing applications. They combine the weather resistance of EPDM with the mechanical strength of SBR, offering a cost-effective solution for non-critical industrial use.
