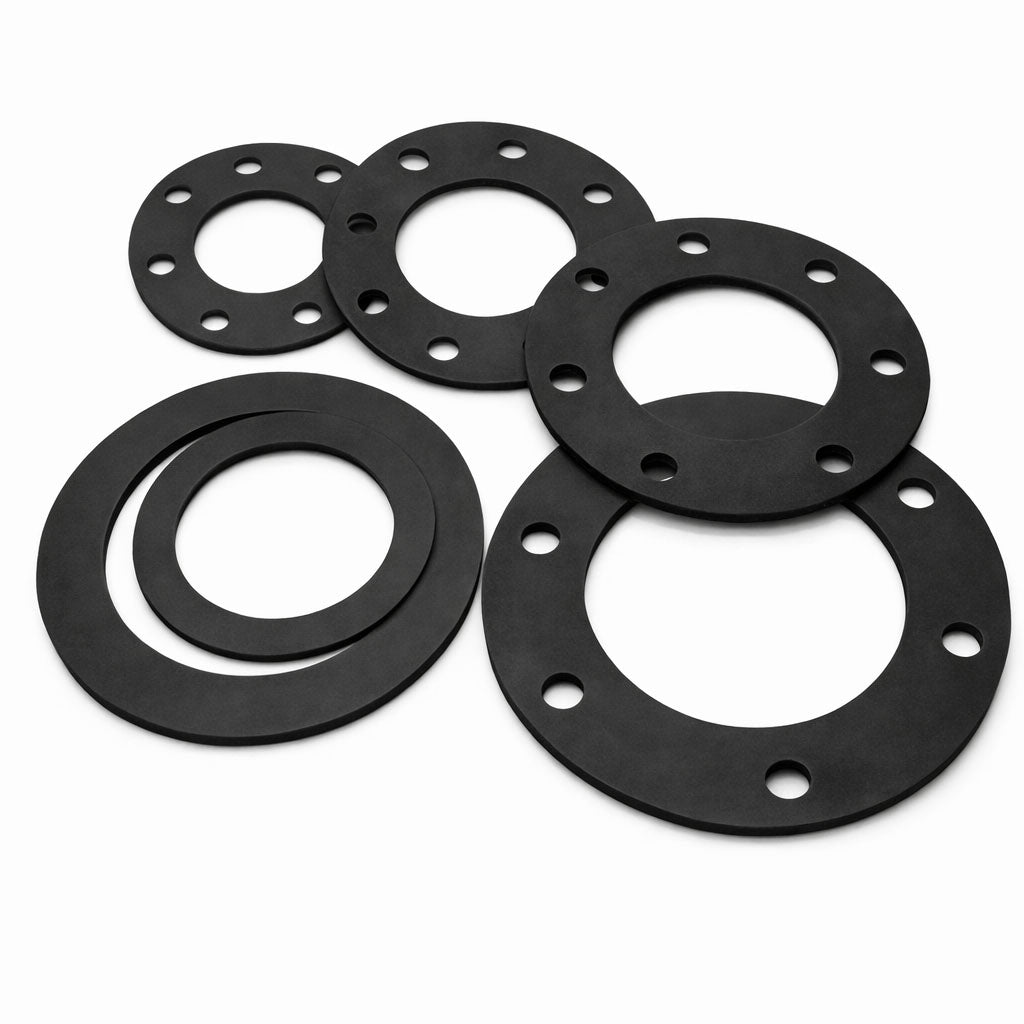

EPDM/SBR rubber gaskets

EPDM/SBR rubber gaskets

View full details

Request a quote

Thickness depends on application, pressure, temperature and media.
Any thickness hint is a recommendation only — contact us if unsure.
2D sketch
Live preview
Tip: enter PCD + hole Ø + number of holes to display the bolt pattern.

What are EPDM/SBR rubber gaskets

EPDM/SBR rubber gaskets are industrial sealing components manufactured from a blended rubber compound combining EPDM and SBR. This rubber mix is designed to provide a balanced combination of flexibility, mechanical strength and resistance to environmental influences.

EPDM/SBR rubber gaskets are used in general sealing applications where water resistance, durability and cost-efficiency are important, while resistance to oils or aggressive chemicals is not a primary requirement.

When do you need EPDM/SBR rubber mix gaskets

EPDM/SBR rubber mix gaskets are used when a versatile sealing solution is required for applications involving water, air or mild media. The combination of EPDM and SBR makes these gaskets suitable for installations exposed to varying conditions without the need for a specialised rubber type.

These gaskets are commonly selected for applications with moderate pressure and temperature requirements in general industrial environments.

Applications of EPDM/SBR rubber gaskets

EPDM/SBR rubber gaskets are applied in pipe flanges, enclosures, mechanical assemblies and general industrial equipment. They are suitable for both indoor and outdoor use where stable sealing performance and material flexibility are required.

Depending on the application, EPDM/SBR gaskets are available in standard gasket shapes or can be supplied in different formats to suit specific sealing surfaces.

EPDM/SBR rubber gaskets specifications

Hardness: 50–75 Shore A
Density: 1.10–1.50 g/cm³
Tensile Strength: 5–15 MPa
Elongation at Break: 200–500 %
Temperature Range: −30 °C to +120 °C
Resistance: water, air, mild chemicals, abrasion



Rubber gasket sheets are widely used for sealing applications due to their flexibility, good compressibility, and reliable performance in general industrial environments.

Custom production

In addition to standard EPDM/SBR rubber gaskets, we can CNC cut custom shapes and dimensions to your drawing. Suitable for prototypes, small series and repeat production.
