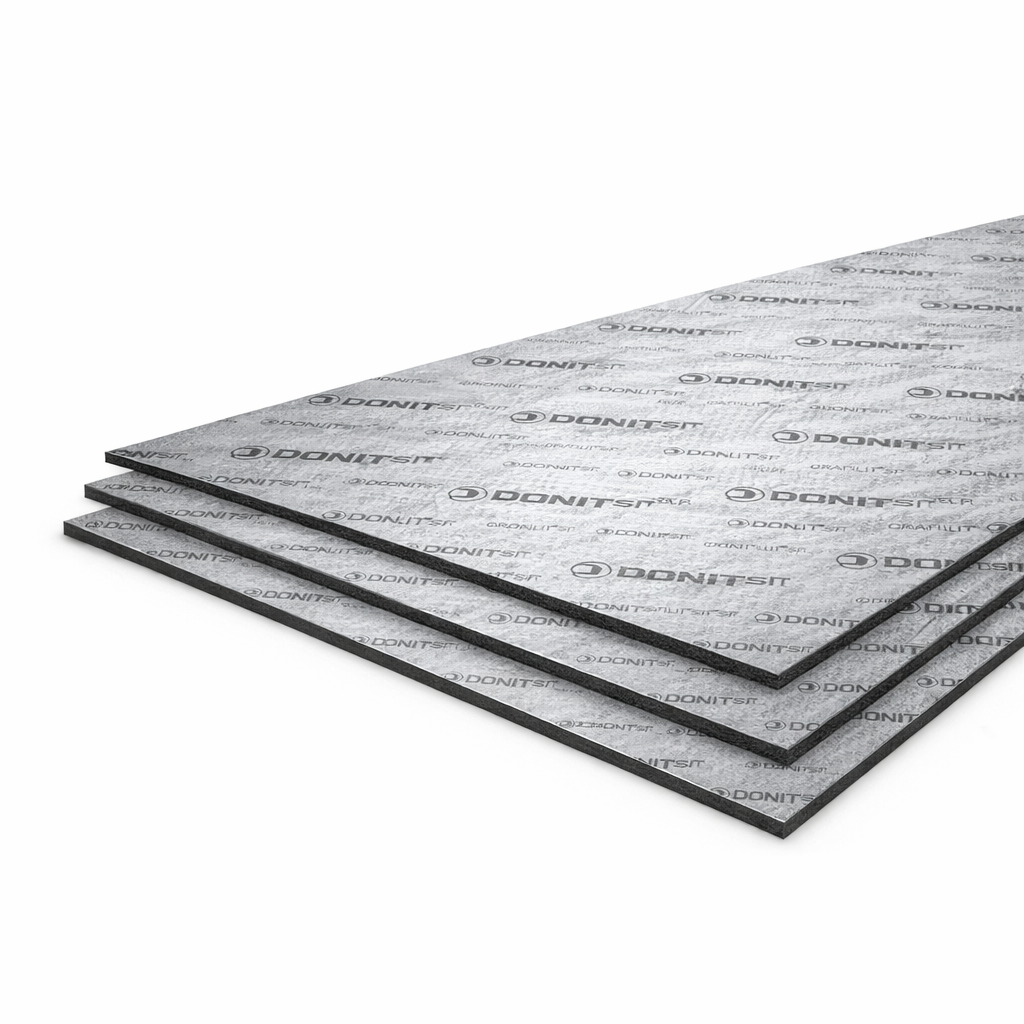

Graphite gasket sheets

Graphite gasket sheets

View full details

Request a quote

Standard sheet size will be read from Size (Width × Length). If you need a larger size or a thickness that’s not listed, please mention it in Notes.
2D schematic
Top view (2D)
Live preview
Pieces per sheet: —
Sheets needed (estimate): —
Estimate only: actual yield can vary due to cutting kerf/tool thickness (especially on thicker sheets), which may reduce usable dimensions by a few millimeters.

Graphite gasket sheets specifications

Material type: Expanded graphite
Operating pressure: up to 250 bar (depending on design)
Temperature range: −200 °C to +450 °C (up to +550 °C in non-oxidizing environments)
Creep resistance: excellent
Sealing performance: highly reliable under extreme conditions

Graphite gaskets offer outstanding sealing performance in high-temperature and high-pressure applications. They are commonly used in flanges, valves and heat exchangers where fibre or PTFE gaskets are no longer suitable.

Other materials

Custom production

In addition to standard Graphite gasket sheets, we can CNC cut custom shapes and dimensions to your drawing. Suitable for prototypes, small series and repeat production.
