Pieces per sheet:
—
Sheets needed (estimate):
—
Estimate only: actual yield can vary due to cutting kerf/tool thickness (especially on thicker sheets),
which may reduce usable dimensions by a few millimeters.
| Item name | Thickness | Max Length | Max Width |
|---|---|---|---|
| KLINGERsil gasket sheets 0.5 mm | 0.5 mm | 2000 mm | 1000 mm |
| KLINGERsil gasket sheets 0.75 mm | 0.75 mm | 2000 mm | 1000 mm |
| KLINGERsil gasket sheets 1 mm | 1 mm | 2000 mm | 1000 mm |
| KLINGERsil gasket sheets 1.5 mm | 1.5 mm | 2000 mm | 1000 mm |
| KLINGERsil gasket sheets 2 mm | 2 mm | 2000 mm | 1000 mm |
| KLINGERsil gasket sheets 3 mm | 3 mm | 2000 mm | 1000 mm |
| KLINGERsil gasket sheets are available cut to size. Larger dimensions and custom shapes can be supplied on request. | |||

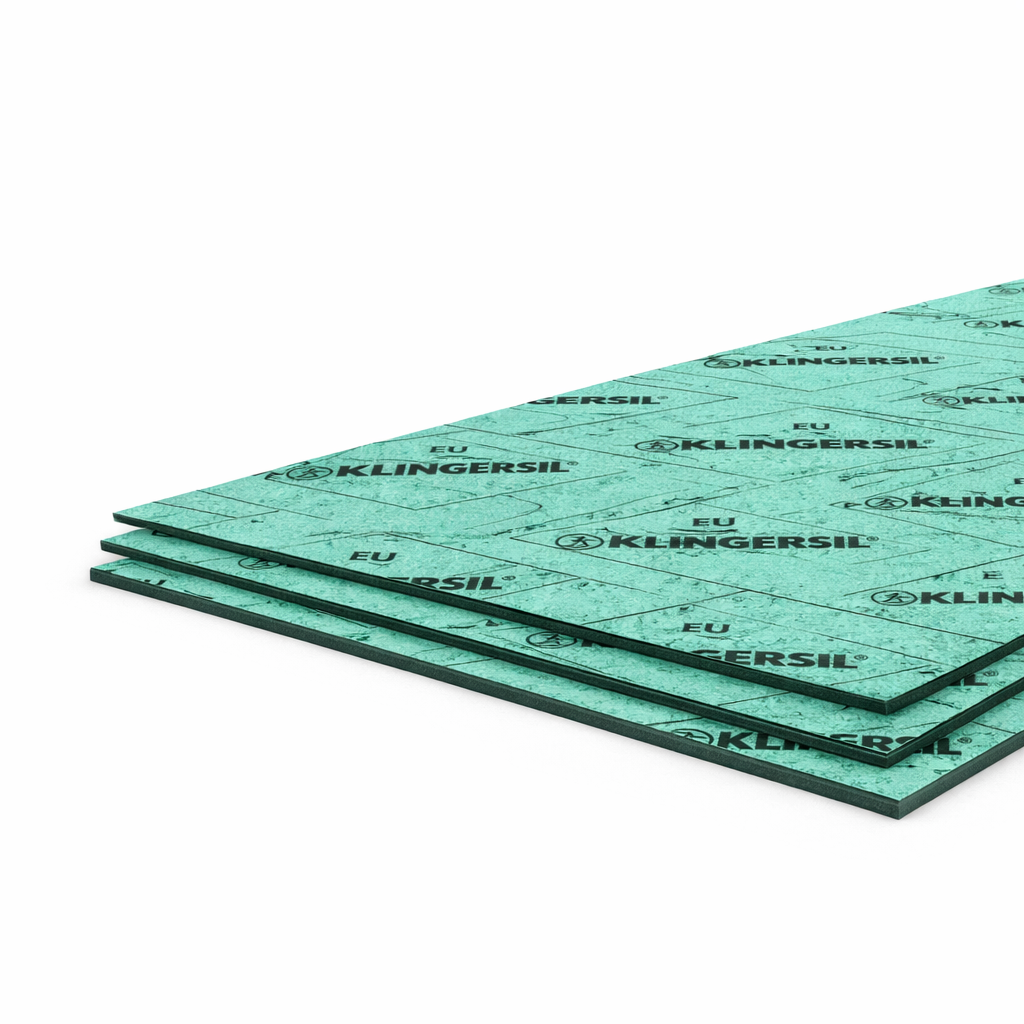

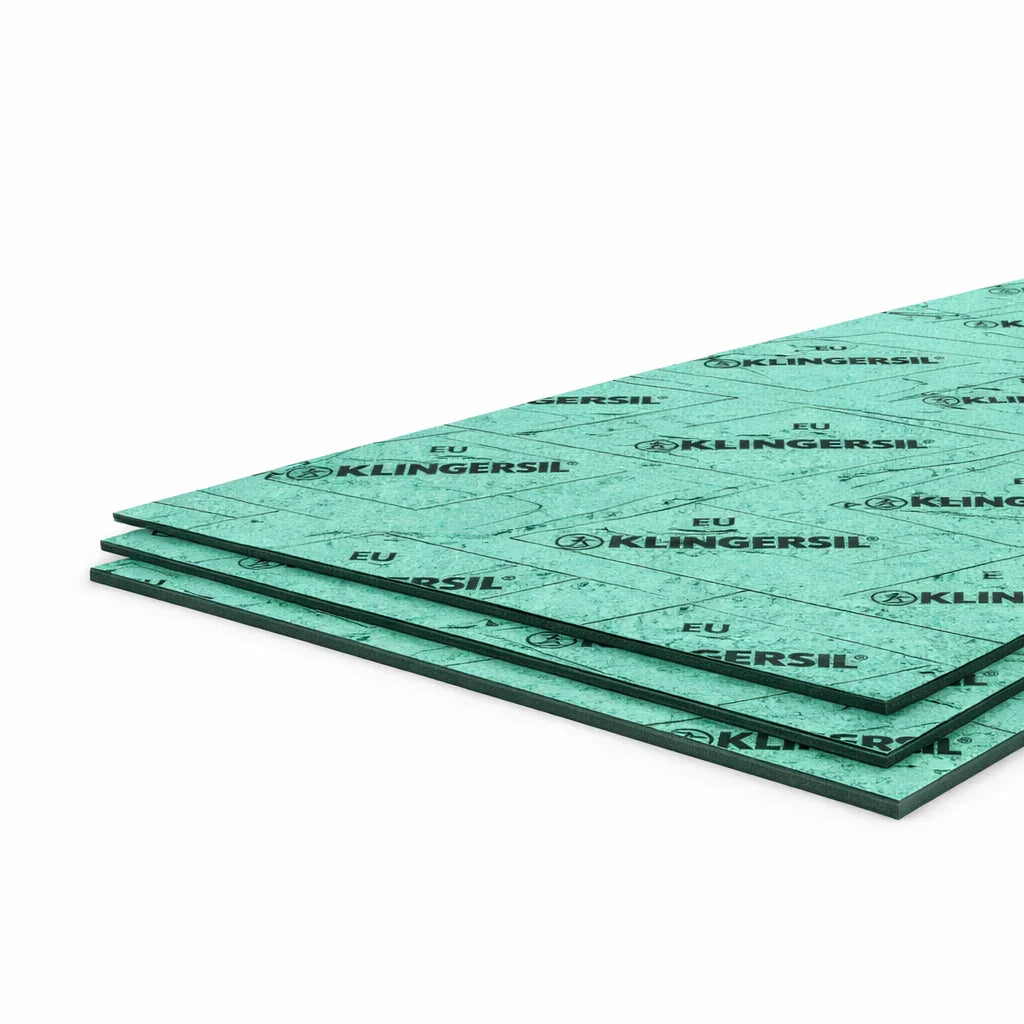

KLINGERsil gasket sheets specifications
Material type: Compressed non-asbestos fibre
Operating pressure: up to 100 bar (depending on grade)
Temperature range: −50 °C to +250 °C (media dependent)
Creep resistance: good
Sealing performance: reliable under fluctuating loads
Fibre gasket sheets such as KLINGERsil are widely used for static sealing applications. They offer a balanced combination of strength, compressibility and chemical resistance, making them suitable for oils, fuels, water, steam and many industrial media.
