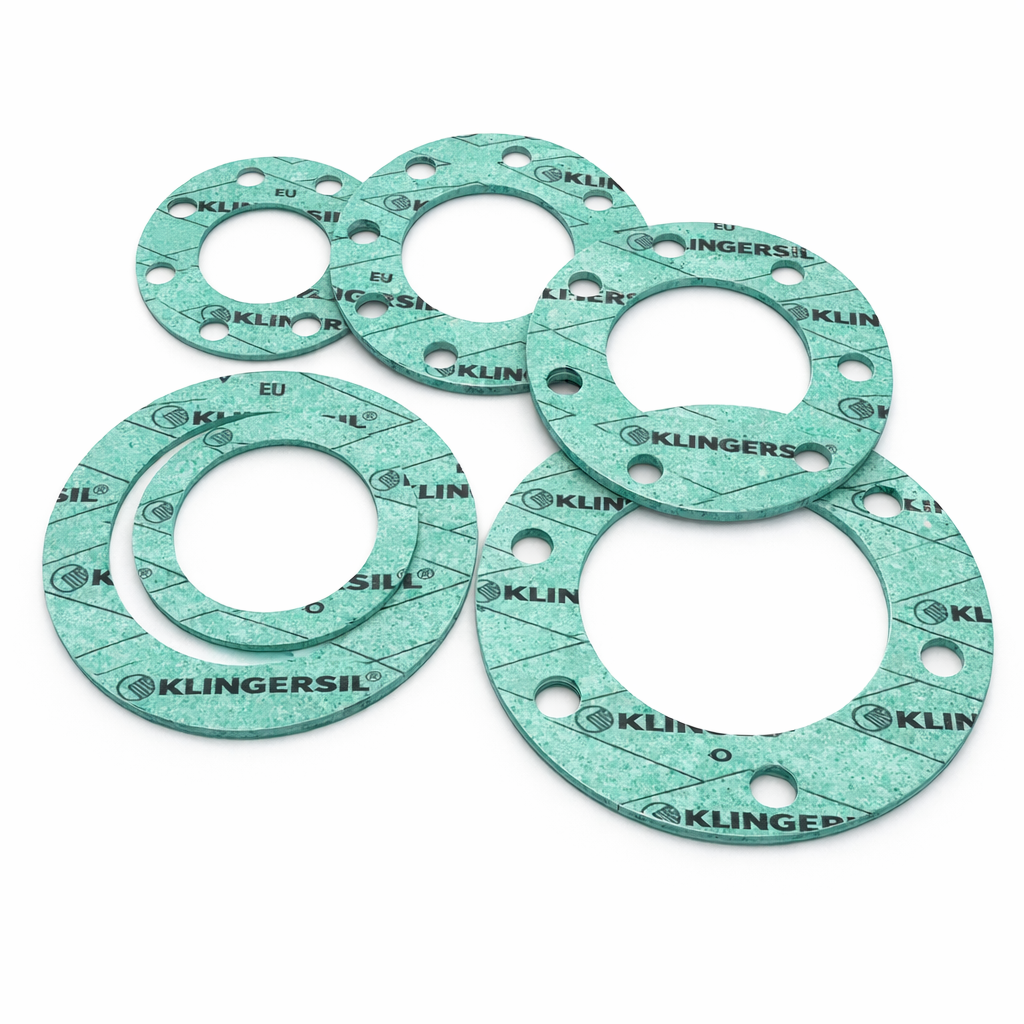

KLINGERsil gaskets

KLINGERsil gaskets

View full details

Request a quote

Thickness depends on application, pressure, temperature and media.
Any thickness hint is a recommendation only — contact us if unsure.
2D sketch
Live preview
Tip: enter PCD + hole Ø + number of holes to display the bolt pattern.

What are KLINGERsil gaskets

KLINGERsil gaskets are industrial sealing gaskets manufactured from KLINGERsil materials and designed for use in flange connections across a wide range of industrial applications. They belong to the category of non-asbestos fiber gaskets and are known for their reliable sealing performance under pressure and temperature.

KLINGERsil gaskets are commonly supplied in standard gasket shapes and dimensions and are used where consistent material quality and dependable sealing behaviour are required.

When do you need KLINGERsil gaskets

KLINGERsil gaskets are used when sealing applications involve pressure, heat or chemically active media and where compliance with industrial standards is essential. They are suitable for installations where standard gasket formats meet the flange design and operating conditions.

Klinger gaskets are often selected in maintenance and replacement scenarios where proven non-asbestos gasket solutions are required without the need for fully custom designs.

Applications of KLINGERsil gaskets

KLINGERsil gaskets are applied in flange connections for pumps, valves, heat exchangers and piping systems in industries such as chemical processing, power generation, water treatment and general manufacturing.

These gaskets are used in both utility and process systems and provide a reliable sealing solution for installations where operational safety and long-term performance are critical.

KLINGERsil gaskets specifications

Material type: Compressed non-asbestos fibre
Operating pressure: up to 100 bar (depending on grade)
Temperature range: −50 °C to +250 °C (media dependent)
Creep resistance: good
Sealing performance: reliable under fluctuating loads

Fibre gasket sheets such as KLINGERsil are widely used for static sealing applications. They offer a balanced combination of strength, compressibility and chemical resistance, making them suitable for oils, fuels, water, steam and many industrial media.

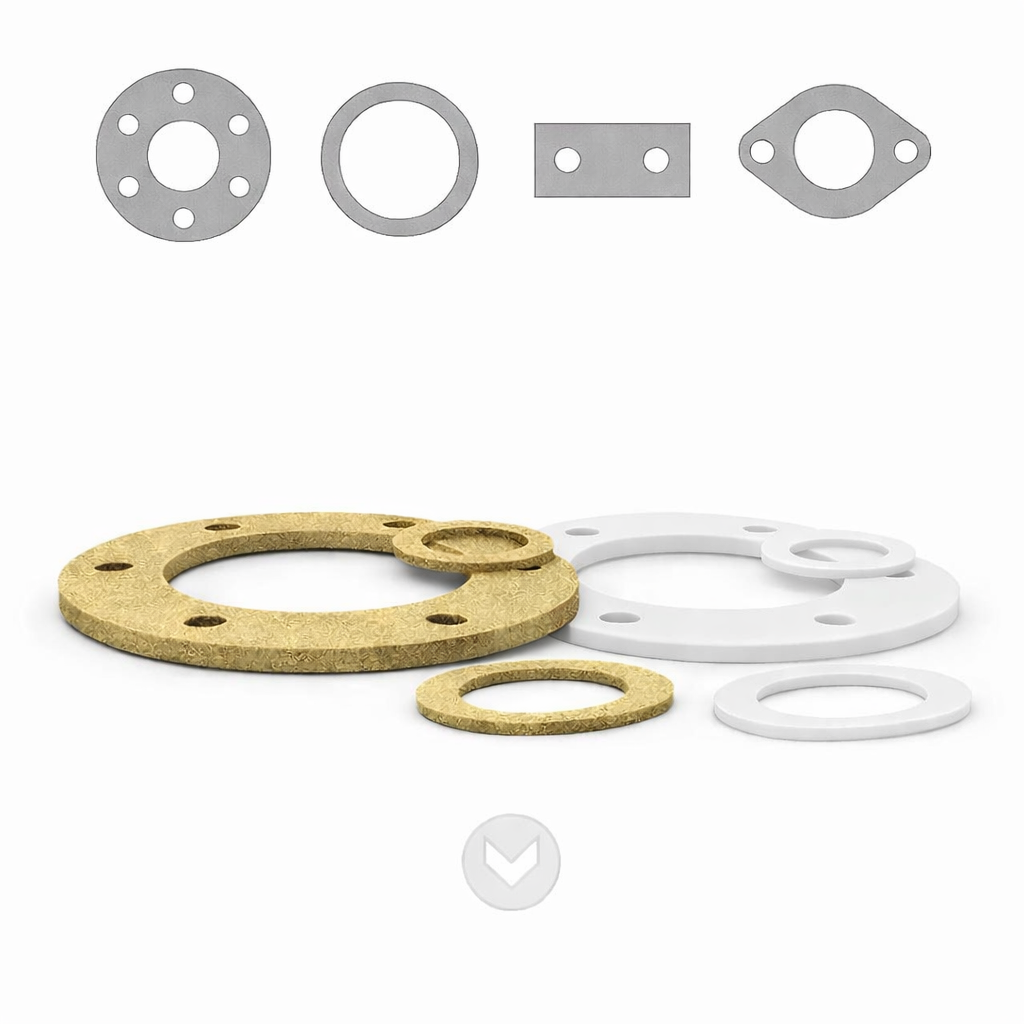

Custom production

In addition to standard KLINGERsil gaskets, we can CNC cut custom shapes and dimensions to your drawing. Suitable for prototypes, small series and repeat production.
