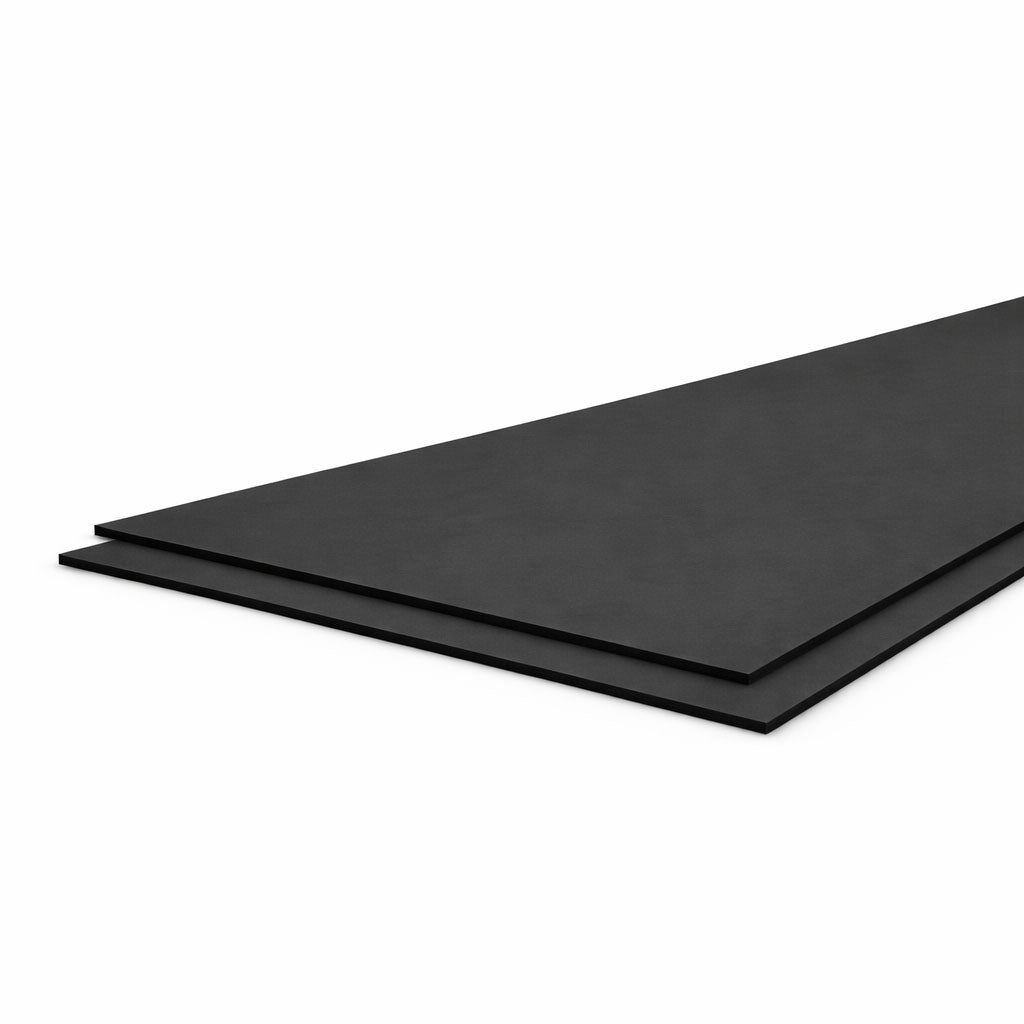

Natural rubber rubber gasket sheets (NR )

Natural rubber rubber gasket sheets (NR )

View full details
Item name Thickness Max Length Max Width
Natural rubber rubber gasket sheets (NR ) 0.25 mm 0.25 mm 2000 mm 1000 mm
Natural rubber rubber gasket sheets (NR ) 0.3 mm 0.3 mm 2000 mm 1000 mm
Natural rubber rubber gasket sheets (NR ) 0.4 mm 0.4 mm 2000 mm 1000 mm
Natural rubber rubber gasket sheets (NR ) 0.5 mm 0.5 mm 2000 mm 1000 mm
Natural rubber rubber gasket sheets (NR ) 0.6 mm 0.6 mm 2000 mm 1000 mm
Natural rubber rubber gasket sheets (NR ) 0.75 mm 0.75 mm 2000 mm 1000 mm
Natural rubber rubber gasket sheets (NR ) 0.8 mm 0.8 mm 2000 mm 1000 mm
Natural rubber rubber gasket sheets (NR ) 1 mm 1 mm 2000 mm 1000 mm
Natural rubber rubber gasket sheets (NR ) 1.2 mm 1.2 mm 2000 mm 1000 mm
Natural rubber rubber gasket sheets (NR ) 1.5 mm 1.5 mm 2000 mm 1000 mm
Natural rubber rubber gasket sheets (NR ) 2 mm 2 mm 2000 mm 1000 mm
Natural rubber rubber gasket sheets (NR ) 2.5 mm 2.5 mm 2000 mm 1000 mm
Natural rubber rubber gasket sheets (NR ) 3 mm 3 mm 2000 mm 1000 mm
Natural rubber rubber gasket sheets (NR ) 3.2 mm 3.2 mm 2000 mm 1000 mm
Natural rubber rubber gasket sheets (NR ) 4 mm 4 mm 2000 mm 1000 mm
Natural rubber rubber gasket sheets (NR ) 5 mm 5 mm 2000 mm 1000 mm
Natural rubber rubber gasket sheets (NR ) 6 mm 6 mm 2000 mm 1000 mm
Natural rubber rubber gasket sheets (NR ) 8 mm 8 mm 2000 mm 1000 mm
Natural rubber rubber gasket sheets (NR ) 10 mm 10 mm 2000 mm 1000 mm
Natural rubber rubber gasket sheets (NR ) 12 mm 12 mm 2000 mm 1000 mm
Natural rubber rubber gasket sheets (NR ) 15 mm 15 mm 2000 mm 1000 mm
Natural rubber rubber gasket sheets (NR ) 20 mm 20 mm 2000 mm 1000 mm
Natural rubber rubber gasket sheets (NR ) 25 mm 25 mm 2000 mm 1000 mm
Natural rubber rubber gasket sheets (NR ) are available cut to size. Larger dimensions and custom shapes can be supplied on request.

Request a quote

Standard sheet size will be read from Size (Width × Length). If you need a larger size or a thickness that’s not listed, please mention it in Notes.
2D schematic
Top view (2D)
Live preview
Pieces per sheet:
Sheets needed (estimate):
Estimate only: actual yield can vary due to cutting kerf/tool thickness (especially on thicker sheets), which may reduce usable dimensions by a few millimeters.

What are natural rubber gasket sheets

Natural rubber gasket sheets are sealing materials made from NR (natural rubber), known for their high elasticity, resilience and mechanical strength. These sheets are used in applications that require excellent flexibility, shock absorption and wear resistance under low to moderate temperatures.

Natural rubber gasket material is suitable for static sealing tasks where oil resistance is not critical. It offers good performance in air, water and non-aggressive media, making it a common choice for general-purpose gaskets.

When to use natural rubber gasket material

You use natural rubber gasket material when a soft, elastic sealing surface is needed — for example, in low-pressure systems or dynamic joints that require repeated compression. It is particularly useful in applications involving vibration damping or cushioning.

NR gasket sheets are not suitable for environments with oil, solvents, ozone or UV exposure. They are best applied in controlled indoor environments or in contact with neutral fluids.

Applications of natural rubber gasket material

Natural rubber gasket sheets are used in pipe sealing, non-oil flanges, dust covers, and anti-vibration pads. They are common in the agricultural sector, mechanical maintenance and low-tech industrial systems.

NR gasket sheets can be die-cut or waterjet cut into custom shapes for sealing surfaces that benefit from the material’s inherent softness and elasticity.

Natural rubber rubber gasket sheets (NR ) specifications

Hardness: 35–70 Shore A
Density: 0.93–1.00 g/cm³
Tensile Strength: 15–25 MPa
Elongation at Break: 450–750 %
Temperature Range: −50 °C to +80 °C
Resistance: abrasion, water



Natural rubber provides excellent elasticity and abrasion resistance, but has poor resistance to oil, UV radiation and ozone.

Custom production

In addition to standard Natural rubber rubber gasket sheets (NR ), we can CNC cut custom shapes and dimensions to your drawing. Suitable for prototypes, small series and repeat production.
