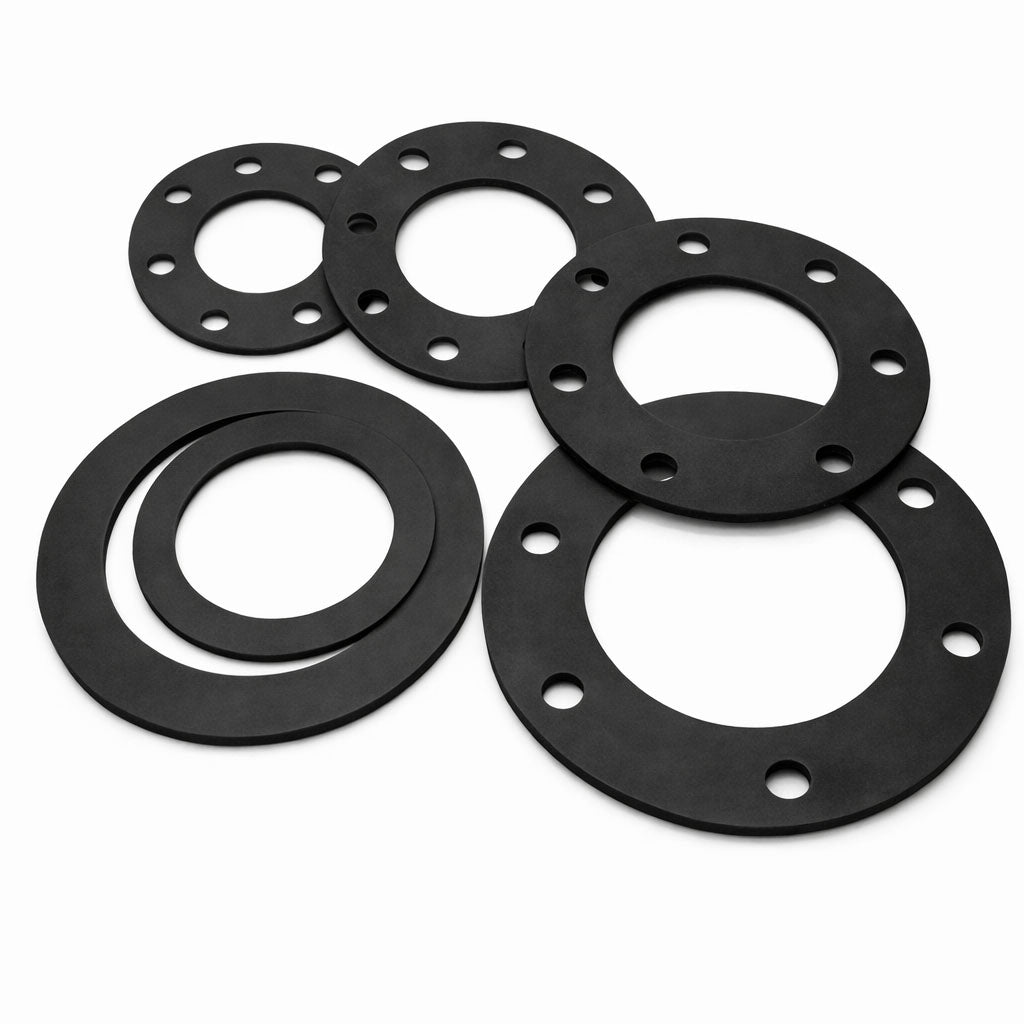

Neoprene rubber gaskets (CR)

Neoprene rubber gaskets (CR)

View full details

Request a quote

Thickness depends on application, pressure, temperature and media.
Any thickness hint is a recommendation only — contact us if unsure.
2D sketch
Live preview
Tip: enter PCD + hole Ø + number of holes to display the bolt pattern.

What are neoprene rubber gaskets

Neoprene rubber gaskets are industrial sealing components manufactured from CR (chloroprene rubber). They are known for their balanced resistance to weathering, water and mechanical stress, making them suitable for a wide range of general sealing applications.

Neoprene rubber gaskets provide stable sealing performance in environments where moderate exposure to oils or environmental influences is expected.

When do you need CR gaskets

CR gaskets are used when a reliable sealing solution is required under varying environmental conditions. They perform well in applications exposed to moisture, weathering or mild oils, where basic rubber materials may degrade over time.

These gaskets are typically selected for applications with moderate pressure and temperature requirements.

Applications of neoprene rubber gaskets

Neoprene rubber gaskets are applied in pipe flanges, HVAC systems, electrical enclosures and general industrial equipment. They are commonly used in outdoor installations and marine-related environments where resistance to water and ageing is important.

Depending on the application, CR gaskets can be supplied in standard gasket shapes or produced in custom formats to suit specific sealing surfaces.

Neoprene rubber gaskets (CR) specifications

Hardness: 40–80 Shore A
Density: 1.20–1.45 g/cm³
Tensile Strength: 8–15 MPa
Elongation at Break: 200–450 %
Temperature Range: −30 °C to +100 °C
Resistance: water, weathering, moderate oil, moderate chemicals



Neoprene rubber offers good all-round resistance to weathering and water, with moderate resistance to oil and chemicals.

Custom production

In addition to standard Neoprene rubber gaskets (CR), we can CNC cut custom shapes and dimensions to your drawing. Suitable for prototypes, small series and repeat production.
