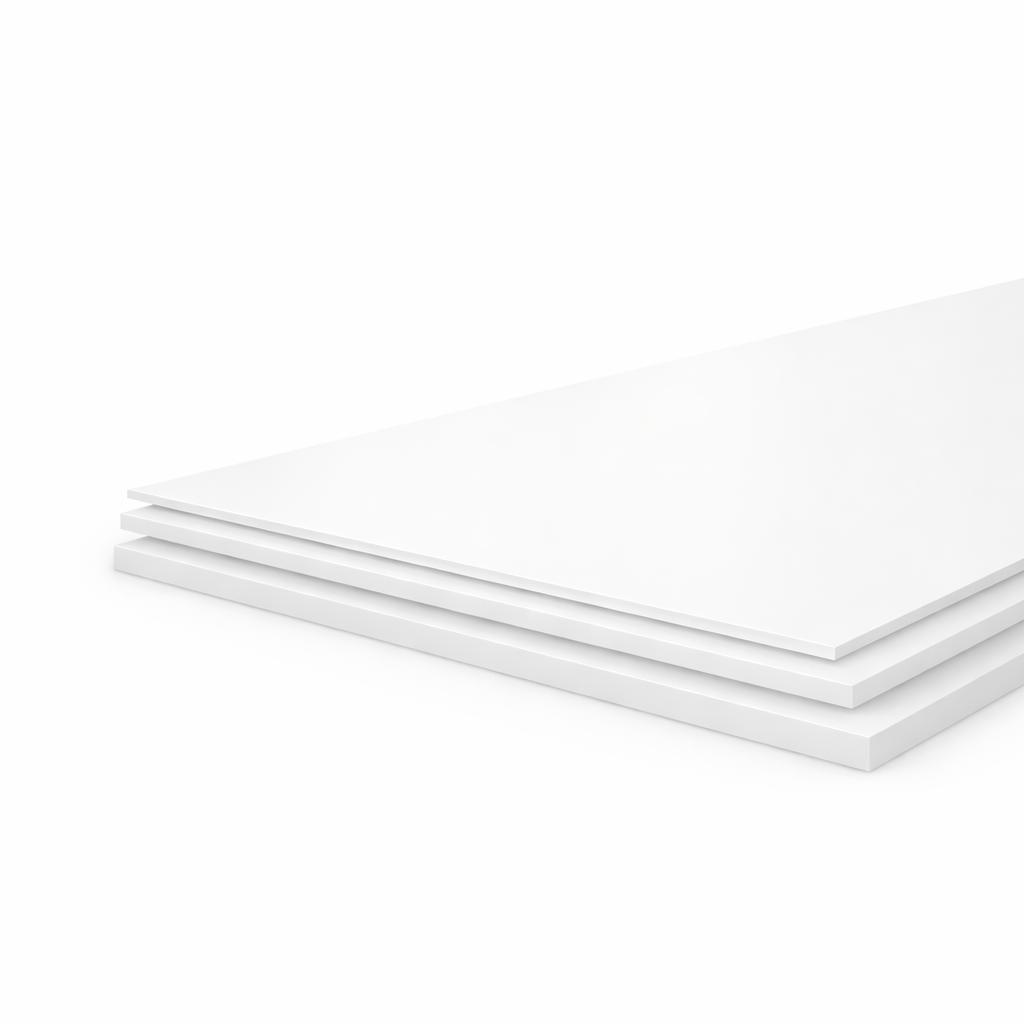

PTFE Sheets

PTFE Sheets

View full details
Item name Thickness Max Length Max Width
PTFE Sheets 0.5 mm 0.5 mm 2000 mm 1000 mm
PTFE Sheets 1 mm 1 mm 2000 mm 1000 mm
PTFE Sheets 1.5 mm 1.5 mm 2000 mm 1000 mm
PTFE Sheets 2 mm 2 mm 2000 mm 1000 mm
PTFE Sheets 3 mm 3 mm 2000 mm 1000 mm
PTFE Sheets 4 mm 4 mm 2000 mm 1000 mm
PTFE Sheets 5 mm 5 mm 2000 mm 1000 mm
PTFE Sheets 6 mm 6 mm 2000 mm 1000 mm
PTFE Sheets 8 mm 8 mm 2000 mm 1000 mm
PTFE Sheets 10 mm 10 mm 2000 mm 1000 mm
PTFE Sheets 12 mm 12 mm 2000 mm 1000 mm
PTFE Sheets 15 mm 15 mm 2000 mm 1000 mm
PTFE Sheets 20 mm 20 mm 2000 mm 1000 mm
PTFE Sheets 25 mm 25 mm 2000 mm 1000 mm
PTFE Sheets 30 mm 30 mm 2000 mm 1000 mm
PTFE Sheets 40 mm 40 mm 2000 mm 1000 mm
PTFE Sheets 50 mm 50 mm 2000 mm 1000 mm
PTFE Sheets are available cut to size. Larger dimensions and custom shapes can be supplied on request.

Request a quote

Standard sheet size will be read from Size (Width × Length). If you need a larger size or a thickness that’s not listed, please mention it in Notes.
2D schematic
Top view (2D)
Live preview
Pieces per sheet: —
Sheets needed (estimate): —
Estimate only: actual yield can vary due to cutting kerf/tool thickness (especially on thicker sheets), which may reduce usable dimensions by a few millimeters.

Related collections

What are PTFE sheets?

PTFE sheets, also referred to as PTFE plastic sheets or Teflon plates, are flat semi-finished products made from polytetrafluoroethylene. PTFE sheet material is widely used in technical and industrial applications where consistent material properties and dimensional accuracy are required.

PTFE sheets cut to size

PTFE sheets can be supplied cut to size according to specification. Teflon plates are available in various thicknesses and formats and can be machined to the required dimensions for further processing or direct use.

Custom-sized PTFE plates are commonly used as base material for machined parts, structural components and technical applications where flat sheet material is required.

Applications of PTFE plastic sheets

PTFE plastic sheets are used in machinery construction, chemical processing, food industry equipment and mechanical engineering. The material is selected for applications where low friction, dimensional stability and chemical resistance are important.

PTFE Sheets specifications

Hardness: 50–65 Shore D
Density: 2.10–2.30 g/cm³
Tensile Strength: 20–35 MPa
Elongation at Break: 200–400 %
Temperature Range: −200 °C to +260 °C
Resistance: chemicals, solvents, acids, bases, moisture

PTFE (Teflon) is known for its excellent chemical resistance, very low friction, and outstanding performance at extreme temperatures.

Custom production

In addition to standard PTFE Sheets, we can CNC cut custom shapes and dimensions to your drawing. Suitable for prototypes, small series and repeat production.
