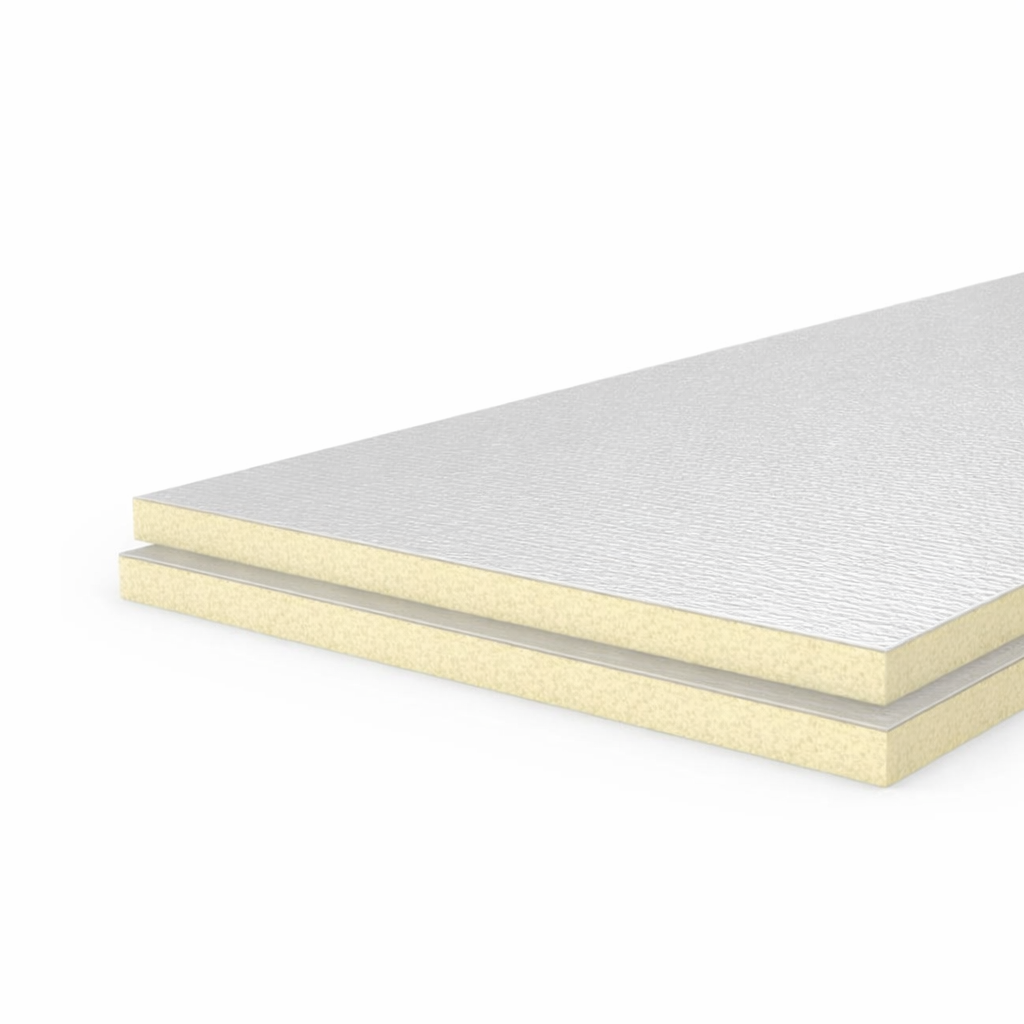

PUR insulation boards

PUR insulation boards

Product overview
Material PUR rigid foam (polyurethane)
Product form Rigid insulation boards
Thermal conductivity (λ) Approx. 0.022–0.028 W/m·K
Thermal insulation performance High
Fire performance Class E (EN 13501-1)
Moisture absorption Low (closed-cell structure)
Compressive strength Approx. 150–200 kPa
Water vapour diffusion Low
Application areas Floor, wall and roof insulation

View full details
Item name Thickness Max Length Max Width
PUR insulation boards 10 mm 10 mm 2000 mm 1000 mm
PUR insulation boards 20 mm 20 mm 2000 mm 1000 mm
PUR insulation boards 30 mm 30 mm 2000 mm 1000 mm
PUR insulation boards 40 mm 40 mm 2000 mm 1000 mm
PUR insulation boards 50 mm 50 mm 2000 mm 1000 mm
PUR insulation boards 60 mm 60 mm 2000 mm 1000 mm
PUR insulation boards 70 mm 70 mm 2000 mm 1000 mm
PUR insulation boards 80 mm 80 mm 2000 mm 1000 mm
PUR insulation boards 100 mm 100 mm 2000 mm 1000 mm
PUR insulation boards 120 mm 120 mm 2000 mm 1000 mm
PUR insulation boards 140 mm 140 mm 2000 mm 1000 mm
PUR insulation boards are available cut to size. Larger dimensions and custom shapes can be supplied on request.

Calculate price

2D schematic
Top view (2D)
Live preview

What are PUR insulation boards

PUR insulation boards are rigid insulation panels made from polyurethane foam. They are designed to provide effective thermal insulation while maintaining a relatively low material thickness.

The closed-cell structure of PUR insulation boards contributes to consistent insulation performance and dimensional stability.

Where are PUR insulation boards used

PUR insulation boards are used in applications where thermal insulation and space efficiency are important. Typical uses include building construction, technical installations and industrial environments.

They are applied in walls, floors, roofs and equipment enclosures where controlled insulation performance is required.

Properties of PUR insulation boards

PUR insulation boards are known for their good insulating properties and lightweight structure. The material performs reliably in applications where temperature control and structural stability are required.

The suitability of PUR insulation boards depends on the application conditions and installation requirements.

Fire performance of PUR insulation boards

PUR insulation boards are available in different fire performance classes, depending on the formulation and facing materials used. The fire behaviour of PUR insulation boards is therefore application-dependent and must be assessed in relation to local regulations and installation conditions.

Material selection should take fire safety requirements into account, especially in applications where insulation is used in enclosed spaces or technical installations.
