SBR rubber sheet

SBR rubber sheet

Item name Thickness Max Length Max Width
SBR rubber sheet 0.5 mm 0.5 mm 2000 mm 1000 mm
SBR rubber sheet 1 mm 1 mm 2000 mm 1000 mm
SBR rubber sheet 1.5 mm 1.5 mm 2000 mm 1000 mm
SBR rubber sheet 2 mm 2 mm 2000 mm 1000 mm
SBR rubber sheet 3 mm 3 mm 2000 mm 1000 mm
SBR rubber sheet 4 mm 4 mm 2000 mm 1000 mm
SBR rubber sheet 5 mm 5 mm 2000 mm 1000 mm
SBR rubber sheet 6 mm 6 mm 2000 mm 1000 mm
SBR rubber sheet 8 mm 8 mm 2000 mm 1000 mm
SBR rubber sheet 10 mm 10 mm 2000 mm 1000 mm
SBR rubber sheet 12 mm 12 mm 2000 mm 1000 mm
SBR rubber sheet 15 mm 15 mm 2000 mm 1000 mm
SBR rubber sheet 18 mm 18 mm 2000 mm 1000 mm
SBR rubber sheet 20 mm 20 mm 2000 mm 1000 mm
SBR rubber sheet 25 mm 25 mm 2000 mm 1000 mm
SBR rubber sheet 30 mm 30 mm 2000 mm 1000 mm
SBR rubber sheet 35 mm 35 mm 2000 mm 1000 mm
SBR rubber sheet 40 mm 40 mm 2000 mm 1000 mm
SBR rubber sheet 45 mm 45 mm 2000 mm 1000 mm
SBR rubber sheet 50 mm 50 mm 2000 mm 1000 mm
SBR rubber sheet are available cut to size. Larger dimensions and custom shapes can be supplied on request.

View full details

Request a quote

Standard sheet size will be read from Size (Width × Length). If you need a larger size or a thickness that’s not listed, please mention it in Notes.
2D schematic
Top view (2D)
Live preview
Pieces per sheet:
Sheets needed (estimate):
Estimate only: actual yield can vary due to cutting kerf/tool thickness (especially on thicker sheets), which may reduce usable dimensions by a few millimeters.

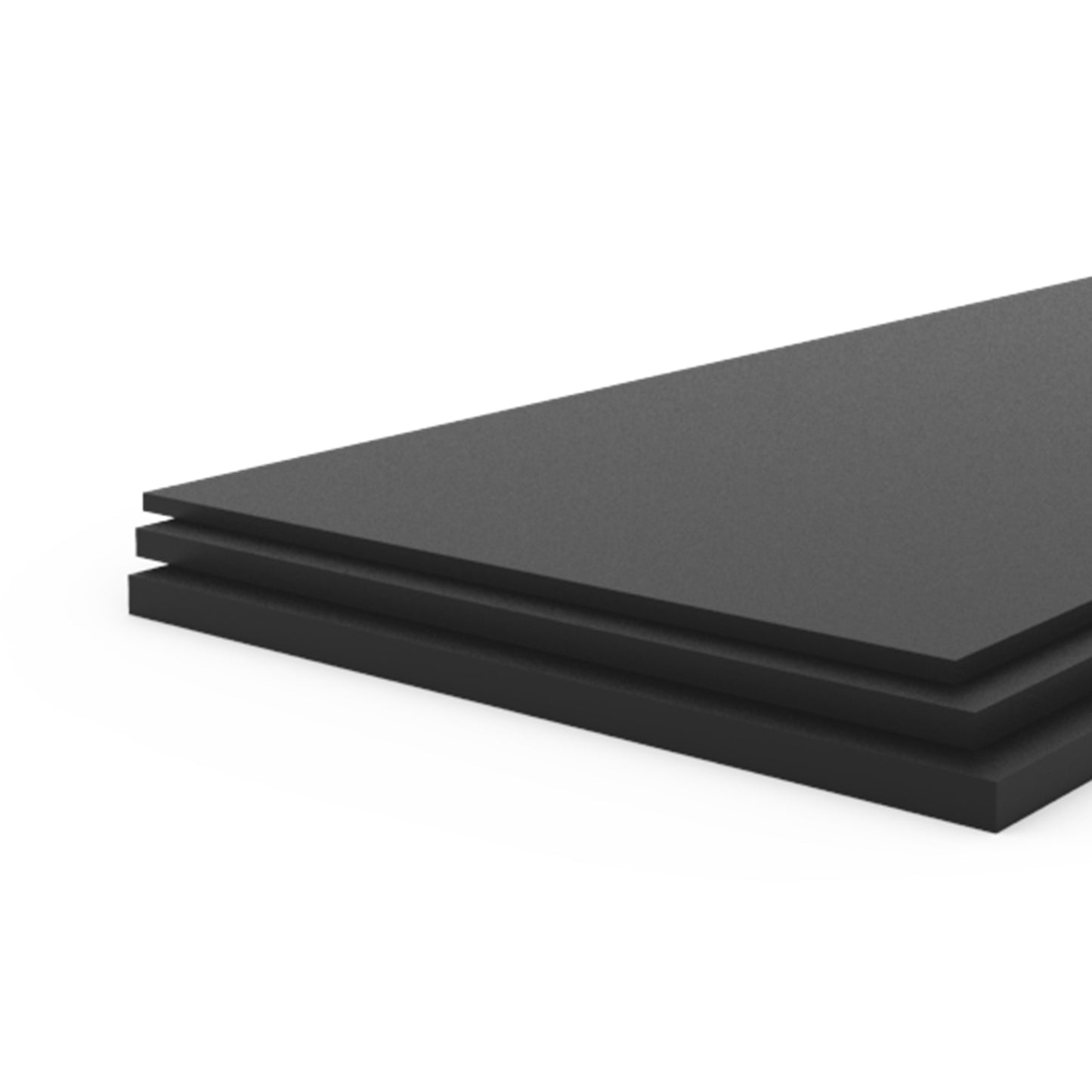

What are SBR rubber sheets

SBR rubber sheets, also referred to as SBR sheets or SBR rubber sheeting, are flat rubber materials manufactured from styrene butadiene rubber. This synthetic material is commonly used in general industrial environments where mechanical resilience and flexibility are required. SBR sheeting is typically applied in situations where basic rubber performance is sufficient and where exposure to oils, chemicals or outdoor conditions is limited.

When to use SBR rubber sheets

SBR rubber sheets are used in applications where resistance to abrasion and mechanical stress is more important than chemical or weather resistance. SBR sheets are suitable for dry, indoor or controlled environments where the material is not exposed to aggressive substances. The material is selected when a general-purpose rubber sheet is required for cushioning, protection or isolation purposes.

Applications of SBR rubber sheets

SBR rubber sheets are typically applied in industrial settings where mechanical wear, contact or pressure distribution plays a role. The applications below represent common usage contexts where SBR sheeting is chosen based on its physical properties rather than resistance to environmental factors.

Industry Typical application context
Industrial machinery Rubber sheeting used for cushioning or protective layers within equipment
Manufacturing Flat rubber material applied for isolation or wear protection in production environments
Material handling SBR sheets used in dry environments where abrasion resistance is required
Technical installations General-purpose rubber sheeting for non-critical sealing or isolation tasks

SBR rubber sheet Specifications

Hardness: 40–75 Shore A
Density: 0.94–1.10 g/cm³
Tensile Strength: 10–18 MPa
Elongation at Break: 250–500 %
Temperature Range: −40 °C to +90 °C
Resistance: abrasion, water



SBR rubber offers good abrasion resistance and mechanical strength, but limited resistance to oil, UV and ozone.

Custom SBR rubber sheet

We can CNC-cut rubber sheets into strips, gaskets, or rings. Additionally, we are able to extrude rubber into virtually any shape. Contact our team to discuss your projects or inquiries.
